Description
Operating Instructions and Parts Manual
INCLUDES:

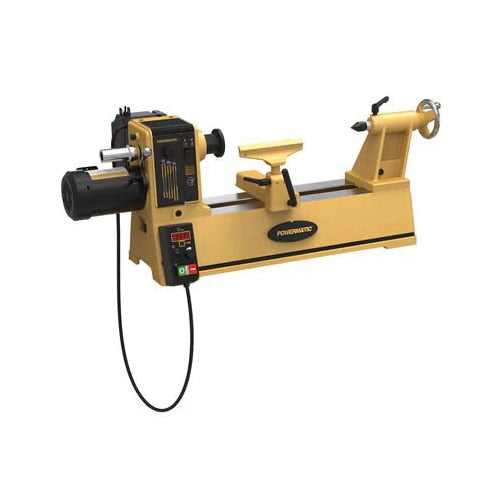

(1) Bench Lathe
FEATURES:
Motor only requires a 115 volt single phase input while providing a consistent torque with 1 horse power, 230 volt, and 3 phase output using an inverter.

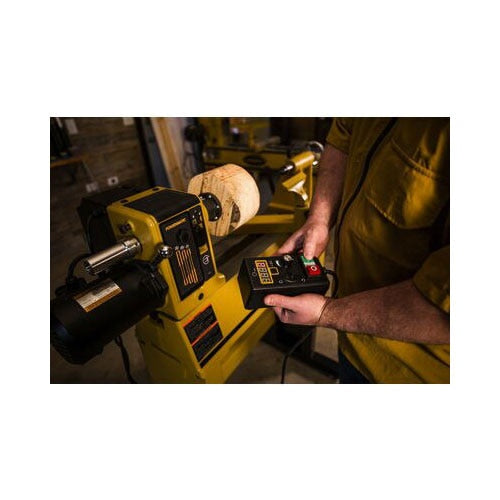

Magnetic control box displays both digital speed and indexing and can be relocated for convenience and safety
Twenty four positive locking indexing position, displayed on the repositionable magnetic control box, simplifies the indexing process
Sliding headstock and removable tailstock make outboard turning easy

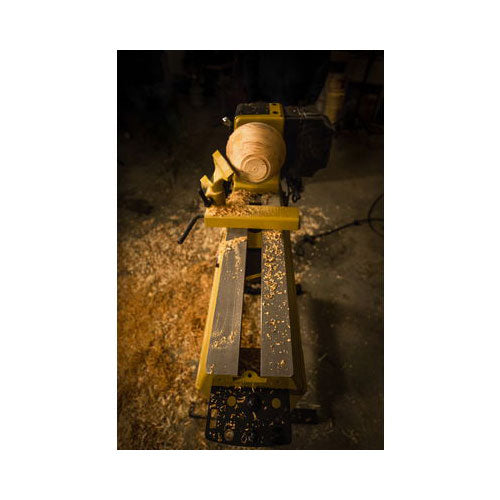

Cast iron bed reduces motor vibration for decreased noise and added precision
Variable speeds from as low 15RPMs to as high as 3600RPMs
With constant monitoring of the motor the inverter keeps torque consistent.

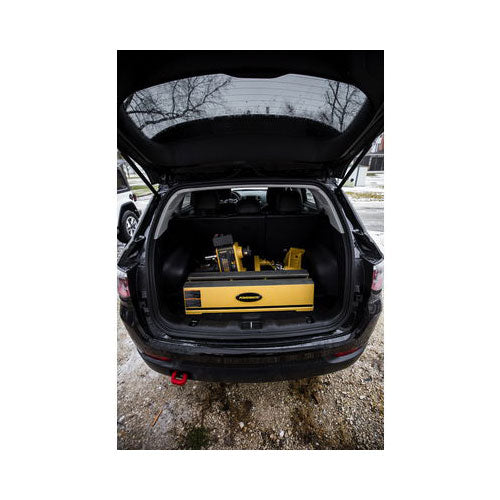

Lathe easily disassembles for better portability

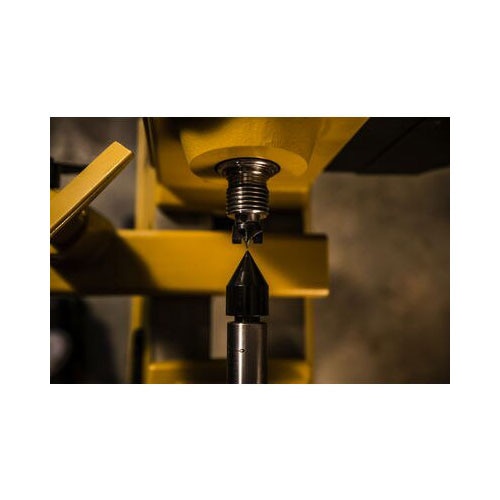

Acme threads on tail stock for smoother operation and longevity
Includes 8 inch tool rest with 1 inch post

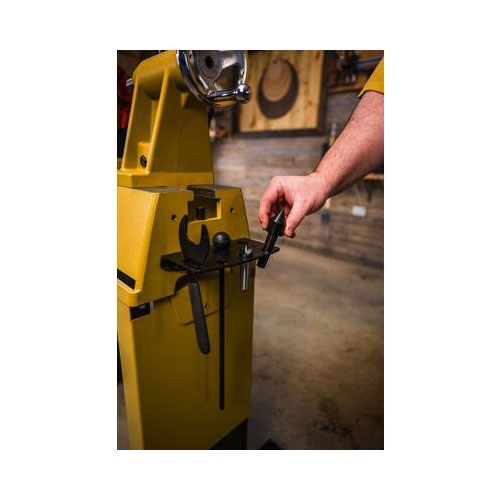

Attached tool caddy allows convenient access to centers, wrenches, and accessories.
Banjo features a non-marring, pinch style clamp for solid tool rest placement
Chrome trimmed hand wheels are ergonomic for a comfortable feel

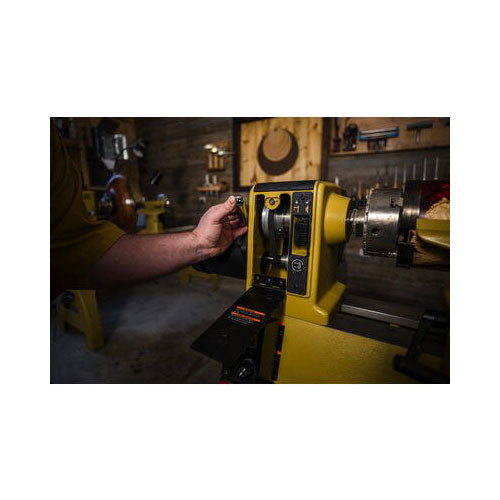

Main power disconnect on rear of headstock lock out for safety
SPECIFICATIONS:
Height: 22.84"
Length: 34.25
Width: 18.9
Volume: 8.303
Prop 65: Harm
Motor Phase: 3
Speed Range: 15-3600
Spindle Threads: 1-1/4" x 8TPI
Headstock Movement: Sliding
Prewired Voltage: 115V
Number of Indexing Positions: 24 Positive Locking
Swing Over Tool Rest Base: 10-3/4"
Motor Power: 1HP
Distance Between Centers: 19-1/4"
Bed Construction: Cast Iron
Size: 20" x 14"
Quill Taper: MT2
Style: Bench
Swing Over Bed: 14-1/4"
Motor Voltage: 230
For nearly one hundred years Powermatic has been dedicated to woodworkers. As a market leader in woodturning Powermatic is proud to offer the powerful PM2014 model lathe.
