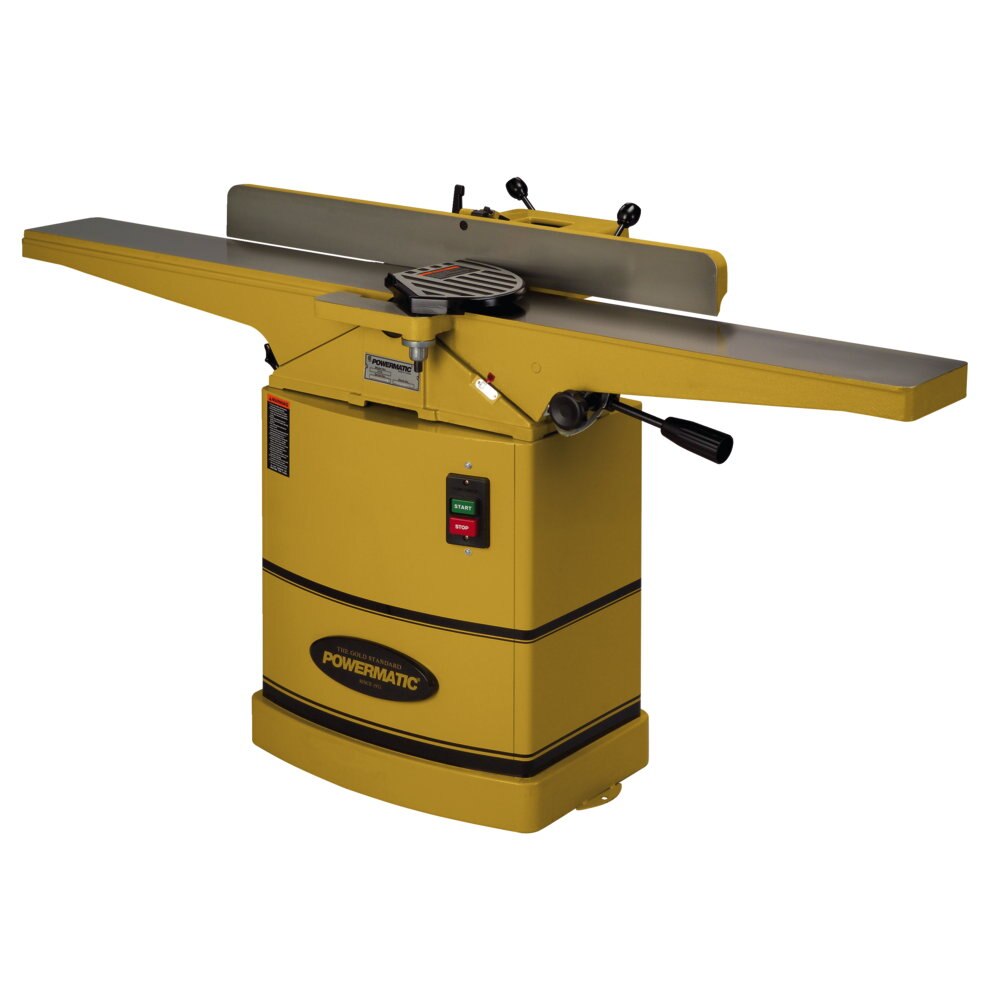

Powermatic 1791317K 54HH 6" Jointer with Helical Cutterhead, 1HP, 1PH, 115/230V


Price:
Sale price$2,299.99

Description

FEATURES:
• Helical cutterhead with 4-sided carbide inserts provides smoother, quieter cutting and finer finish than conventional systems
• 66" long adjustable infeed and outfeed tables provide more working surface
• Fine/quick adjustment lever on infeed table for precision cuts
• Extra-long 38" two-way tilting fence with positive stops provides quick positioning for 90° or bevel cuts
• Enlarged sheet metal stand provides a sturdy base
• 1HP motor offers plenty of power
• Fence controls are center-mounted for convenience
• Push button switch is lockable to prevent accidental starting
• 4" port for dust collection
• Standard Equipment:

SPECIFICATIONS:
• Rabbeting Capacity (In.): NA
• Table Size (L x W) (In.): 66 x 7-1/4
• Helical Knife Size (L x W x T) (In.): 15 x 15 x 2.5
• Dust Port Outside Diameter (In.): 4
• Motor Power (HP): 1
• Cutterhead Speed (RPM): 6,000
• Fence Positive Stops (Deg.): 45, 90, -45
• Outfeed Table Length (In.): 32-1/2
• Motor Voltage (V.): 115/230
• Dust Collection Minimum CFM Required (CFM): 450
• Cutting Capacity (W x D) (In.): 6 x 1/2
• Prewired Voltage (V.): 115
• Motor Phase: 1
• Number of Knives: 40
• Recommended Circuit Size (Amps.): 20/10
• Fence Tilt (Deg.): 45 Forward, 45 Backward
• Motor Current (Amps): 13/6.5
• Fence Size (L x H) (In.): 38 x 4
• Table Height from Floor (In.): 31-1/2
• Infeed Table Length (In.): 32-1/2

This 6" Jointer features a helical cutterhead with 40 four-sided indexable carbide knife inserts – this design provides a superior finish and quieter operation compared to conventional cutterheads, and the inserts require no adjustment once they are installed. If a knife insert becomes nicked, simply rotate it for a fresh edge and continue working. Oversized infeed/outfeed tables are mounted on dovetailed ways. The fence is 38" in length, with positive stops at 90° and 45° right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a 1 HP motor with a non-slip v-belt drive for maximum performance. The 4" dust port offers easy connection to any dust collection system.
