Powermatic 1791283 Description

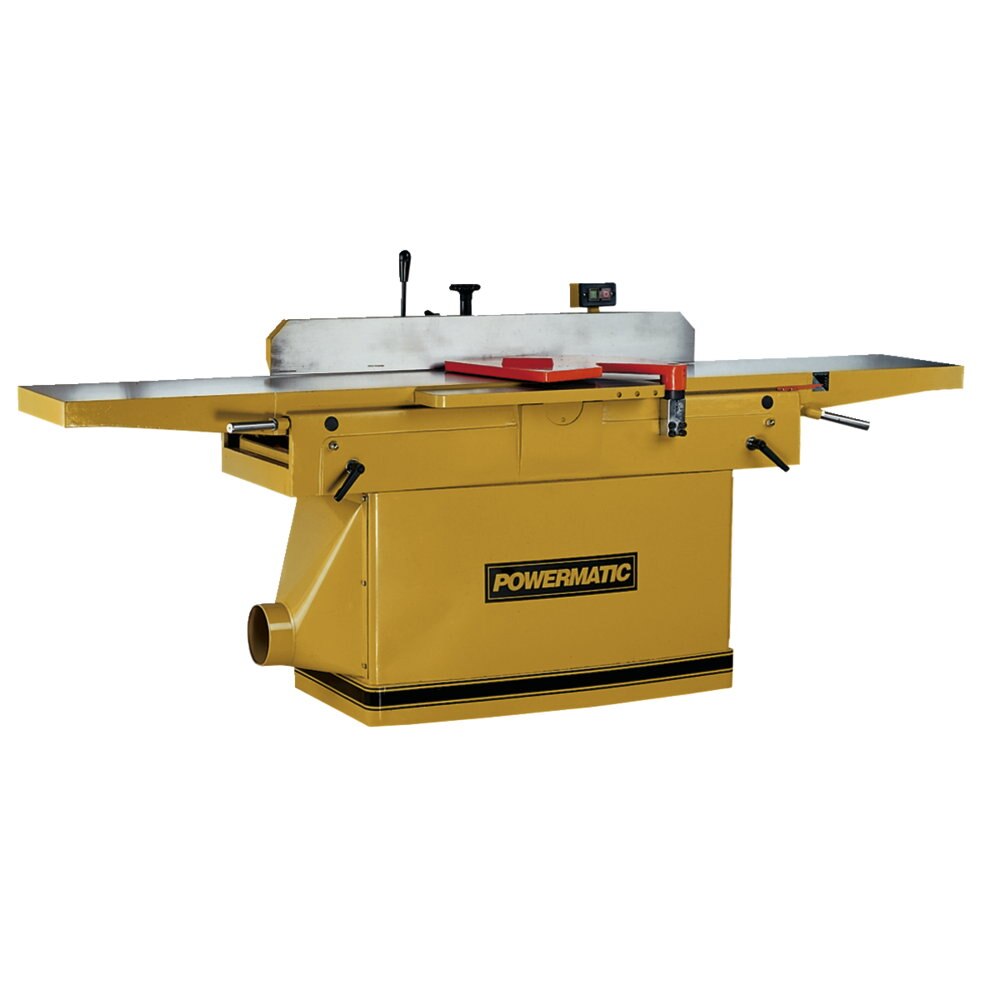

This 16" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially designed solid steel helical cutterhead consists of six rows of precision ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2HP motor delivers all the power you need for even the biggest jobs.
Powermatic 1791283 Features
- Helical cutterhead with 2-sided knife inserts reduces noise, eliminates adjustments and speeds knife changes
- Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
- Large 96" x 16" table surface for maximum support and fine finish
- Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support
- Full size rabbeting table supports large workpieces for rabbets up to 3/4" deep
- 7.5HP Motor for industrial duty
- Standard Equipment:
- Helical cutterhead with inserts
- Tilting fence
- Dust collection adaptor
Powermatic 1791283 Specifications
| Rabbeting Capacity (In.) | 3/4 |
| Table Size (L x W) (In.) | 96 x 16 |
| Rabbeting Ledge (In.) | 5 x 24-1/2 |
| Dust Port Outside Diameter (In.) | 6 |
| Motor Power (HP) | 7-1/2 |
| Cutterhead Speed (RPM) | 5,200 |
| Fence Positive Stops (Deg.) | 45, 90, -45 |
| Cutterhead Diameter (In.) | 4 |
| Outfeed Table Length (In.) | 47-1/4 |
| Motor Voltage (V.) | 230/460 |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Cutting Capacity (W x D) (In.) | 16 x 3/4 |
| Prewired Voltage (V.) | 230 |
| Motor Phase | 3 |
| Number of Knives | 58 |
| Cuts Per Minute | 20,800 |
| Recommended Circuit Size (Amps.) | 30/15 |
| Fence Tilt (Deg.) | 45 Forward, 45 Backward |
| Fence Size (L x H) (In.) | 47-1/4 x 5-1/4 |
| Table Height from Floor (In.) | 37-1/2 |
| Infeed Table Length (In.) | 47-1/2 |
| Standard Knife Size (L x W x T)(mm) | 30 x 12 x 2 |
