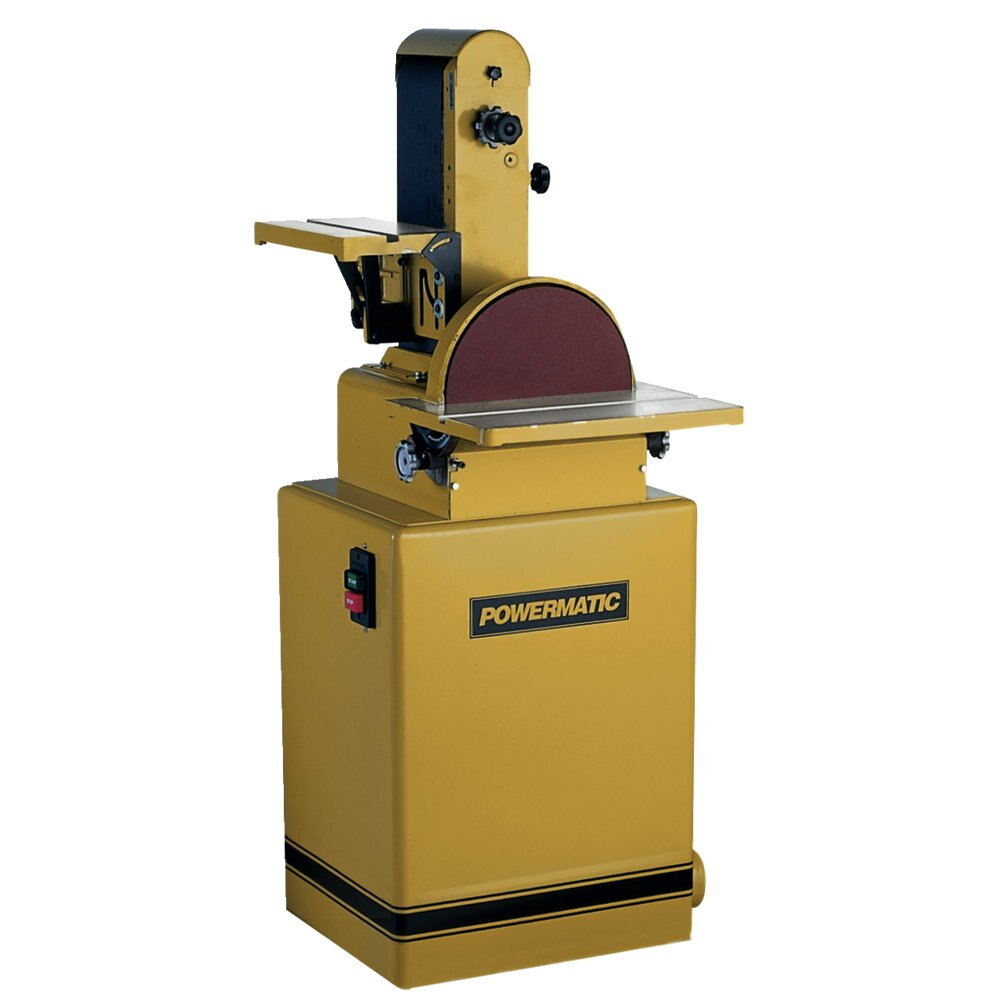

Powermatic 1791292K 31A Belt/Disc Sander, 6"x48" Belt, 2HP, Manual Switch


Price:
Sale price$2,199.99

Description

FEATURES:
• Multi-position belt head locks at any angle from 0° to 90°; includes indexing pin for 0, 45°, and 90° stops
• Belt and disc tables are precision ground cast iron with miter slots
• Belt table tilts down to 45°, and can be set for beveled and mitered angle sanding
• Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support
• 12" disc is balanced for flat, even coverage
• 460V operation requires an additional 460V magnetic switch, part 31A-MSA-2

SPECIFICATIONS:
• Sanding Arm Locking Positions: 0/45/90
• Prewired Voltage (V.): 230
• Belt Table Size (L x W) (In.): 13-1/4 x 7-1/2
• Dust Port Outside Diameter (In.): 4
• Disc Diameter (In.): 12
• Motor Current (Amps): 7/3.5
• Style (Type): Combination Belt/Disc
• Belt Table Tilt (Deg.): 45 Down
• Wiring Remarks: Magnetic Switch / Must purchase 31A-MSA-2 for 460V operation
• Motor Power (HP): 2
• Disc Table Tilt (Deg.): 15 Up, 45 Down
• Belt Speed (RPM): 2,410
• Motor Phase: 3
• Disc Speed (RPM): 2,375
• Motor Voltage (V.): 230/460
• Sanding Belt Size (L x W) (In.): 6 x 48
• Disc Table Size (L x W) (In.): 17-1/4 x 9
• Dust Collection Minimum CFM Required (CFM): 400
• Recommended Circuit Size (Amps.): 20/10

Loaded with features, the 31A from Powermatic can tackle the most demanding tasks. Full cast iron construction allows both metal and woodworking to be done on the same machine and the Integral Dual Dust Port keeps both belt and disc portions clean, extending abrasive life. The articulating table mounted on the 6" x 48" belt sander head can be used vertically, horizontally, or angled to accommodate diverse jobs. The belt head has an indexing pin with stops at 0, 45° and 90° and the head lock allows use at any angle in-between. Removing the top guard allows contour sanding and the cast iron tables with miter gauge slots and positive stops make set-up fast, accurate, and simple for any angle.
