Description

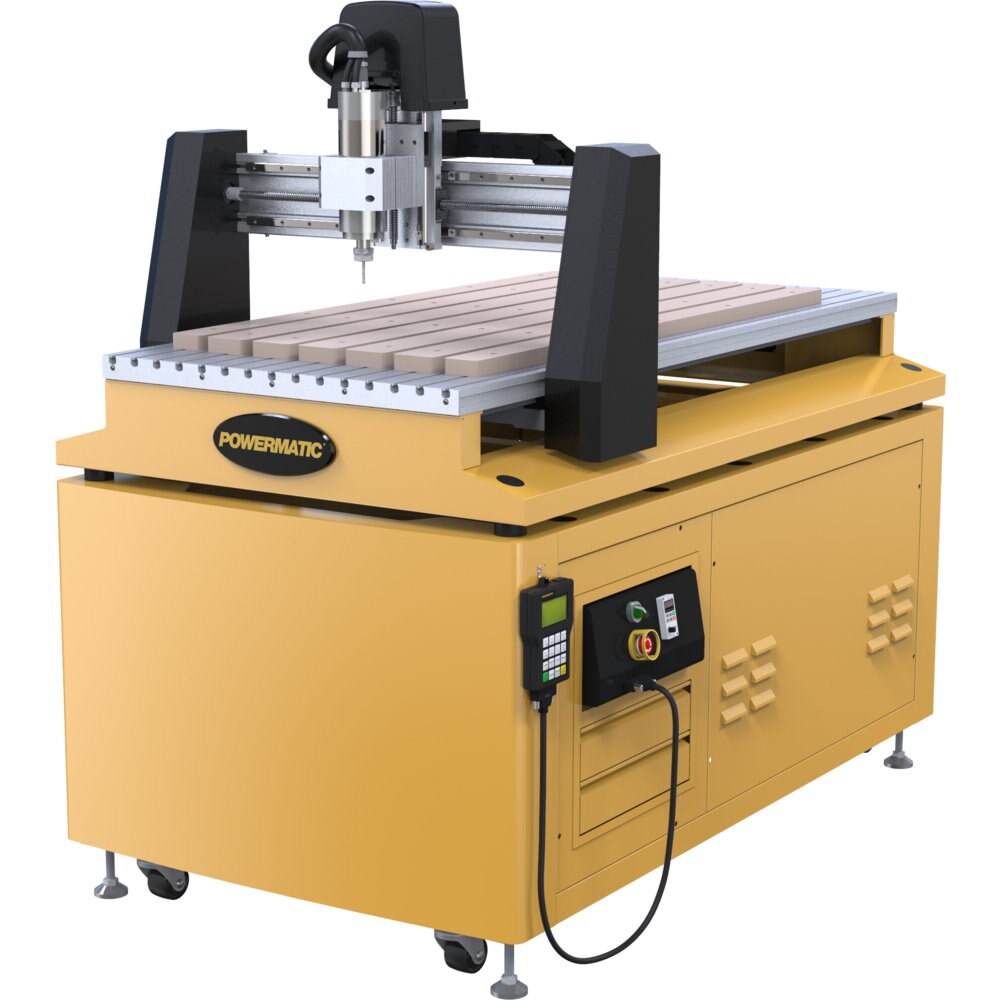

Powermatic 1797024K Features
- Heavy-duty welded steel frame provides rigidity and maintains accuracy
- The extruded aluminum table delivers a large, sturdy surface while the integrated T-slots allow the hold-down clamps to be positioned in any location
- An MDF spoil board protects the table from damage and can be quickly resurfaced using the pre-loaded program
- Exclusive, heavy-duty gantry supports are made of gravity cast aluminum
- Precision ball screws with recirculating ball bearings allow for rapid movement on each axis while maintaining precise spindle placement
- The electro spindle is liquid cooled by a system that pushes coolant through the spindle while a radiator and fan assembly dissipate the heat
- Linear guideways with recirculating ball bearings ensure precise and accurate positioning of the tool bit
- The handheld controller attaches to the DSP control box via a 8 foot cable that makes it easy to oversee any project from a variety of positions
- Flexible nylon track chains protect all cables preventing rubbing and stress
- High-torque stepper motors control each axis, providing fast, quiet and precise movement
Powermatic 1797024K Specifications
| Style (Type) | Spindle |
| X-Axis Travel (In.) | 24 |
| Z-Axis Travel (In.) | 6 |
| Y-Axis Travel (In.) | 48 |
| Precision Ball Screw Axis | X/Y/Z |
| Precision Linear Guide Axis | X/Y/Z |
| Router | Spindle |
| Rapid Feed Rate (IPM) | 200 |
| Collet | ER-20 |
| Spindle Speed (RPM) | 0-24,000 |
| Touch Off Puck | Included |
| Motor Phase | 1 |
| Motor Power (HP) | 3 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Recommended Circuit Size (Amps.) | 10 |
| Floor Space Required (In.) | 52x96 |
| Weight (Lbs.) | 748 |
| Dust Collection Minimum CFM Required (CFM) | 300 |
