Description
Powermatic 1791282 Description

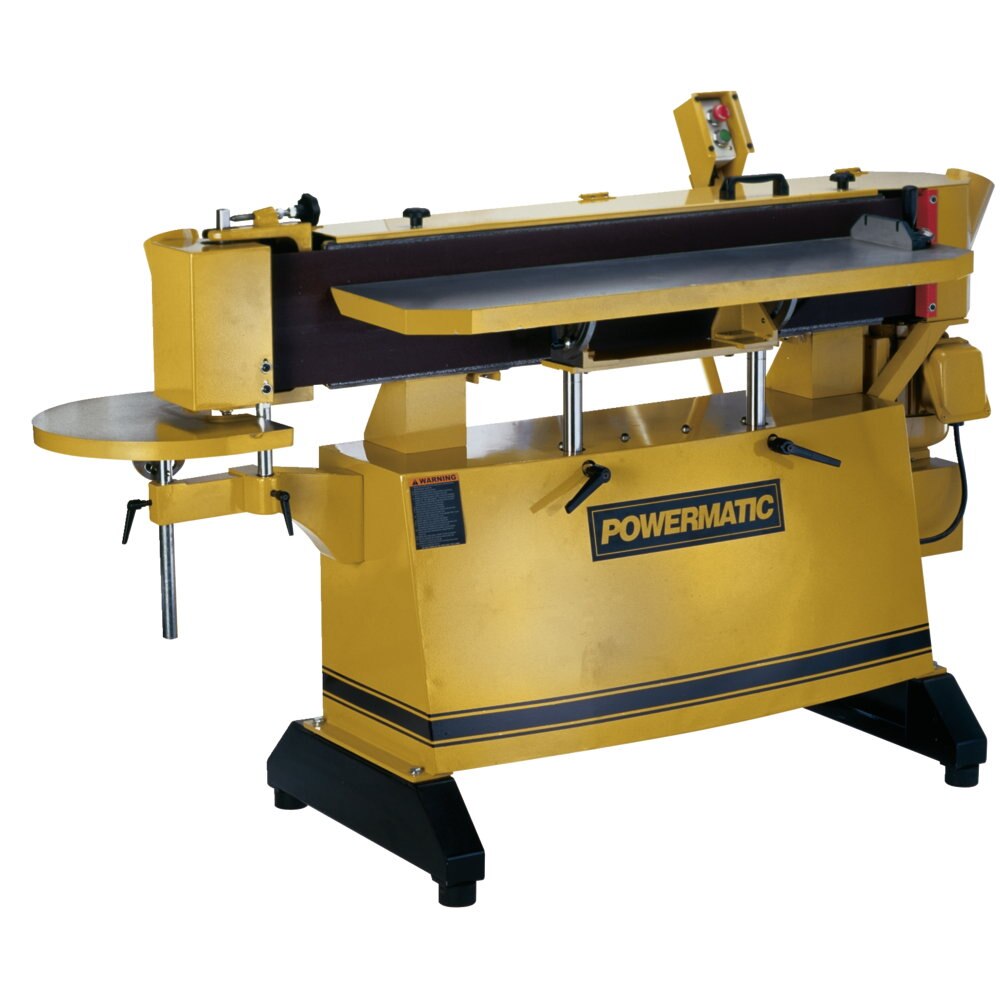

The large 11-3/4" x 48" table on the OES9138 oscillating edge sander travels a full 8" in vertical height to accommodate most woodworking pieces. It will also tilt negative 5° and out to positive 45°. The cast iron platen is a generous 48" x 9-1/2" and covered with graphite for production sanding, offering super support and cooler running to extend belt life. With 24 oscillations per minute you can use the entire belt face without burning. A 3HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with two sealed ball bearings for trouble-free performance. Dual dust collection ports keep the work area clean and extend the life of your abrasive belt.
Powermatic 1791282 Features
- 3HP motor with 9" x 138-3/4" abrasive belt handles large workpieces
- Oscillates 24 cycles per minute for better finish and longer belt life
- 9-1/2" x 48" platen with graphite pad offers largest work surface in its class
- Rugged bearing-assisted tensioning device for fast belt changes and quick adjust tracking
- Pedestal control switch for easy access
- Large 11-3/4" x 48" front worktable with 8" vertical travel tilts and 45° tilt, includes miter head for angle work
- Precision balanced 9" diameter drive drum and 4" diameter rubber coated idler pulley for positive drive and rigid tracking
- Large radius end table has 6" vertical travel and 45° tilt for any angle and working height needed
- Heavy-duty oscillating gearbox and shaft for long maintenance-free use
- Hinged guard opens for infinite length sanding
Powermatic 1791282 Specifications
| Style (Type) | Horizontal/Vertical Oscillating Edge |
| Motor Phase | 1 |
| Oscillations Per Minute | 24 |
| Motor Power (HP) | 3 |
| Sanding Belt Size (L x W) (In.) | 9 x 138-3/4 |
| Table Height from Floor (In.) | 34-1/2 - 40-3/4 |
| Recommended Circuit Size (Amps.) | 30 |
| Dust Port Outside Diameter (In.) | 4 |
| Dust Collection Minimum CFM Required (CFM) | 1,100 |
| Platen Size (In.) | 9-1/2 x 48 |
| End Table Size (In.) | 18 |
| Belt Speed (FPM) | 3542 |
| Main Table Size (L x W) (In.) | 48 x 11-3/4 |
| Main Table Tilt (Deg.) | 5 In, 45 Out |
| Motor Voltage (V.) | 230 only |
| Electrical Controls | Magnetic Starter |
| Drum Diameter (In.) | 4 Outboard, 9 Drive |
| End Table Tilt (Deg.) | 40 In, 45 Out |
